Ardys

Products

Ardys

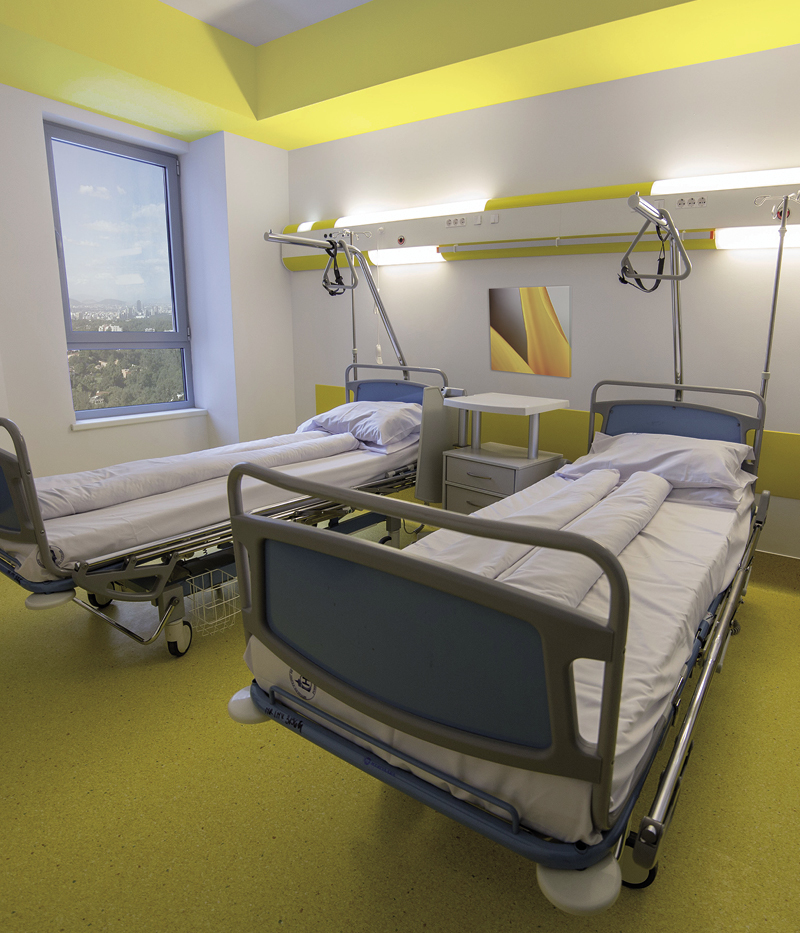

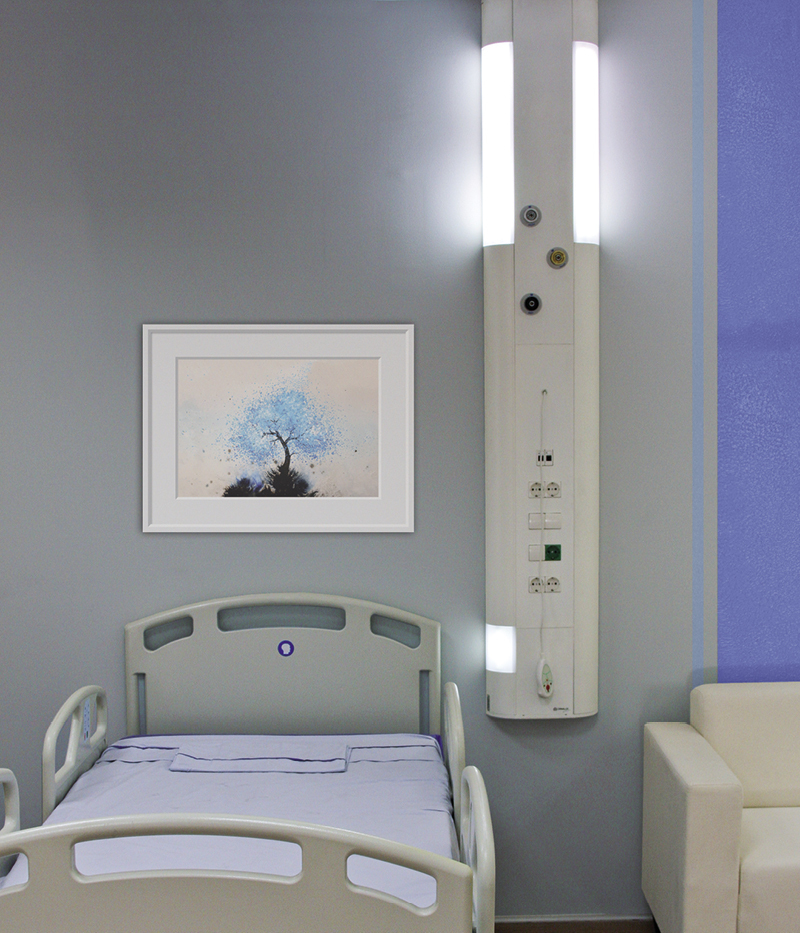

Wall mounted Bed head unit designed to meet requirements of different hospitalization areas, for one bed, with possibly forming continuous lines for several beds.

null

Different colors combinations.

null

Lighting diffusers are made in polycarbonate.

null

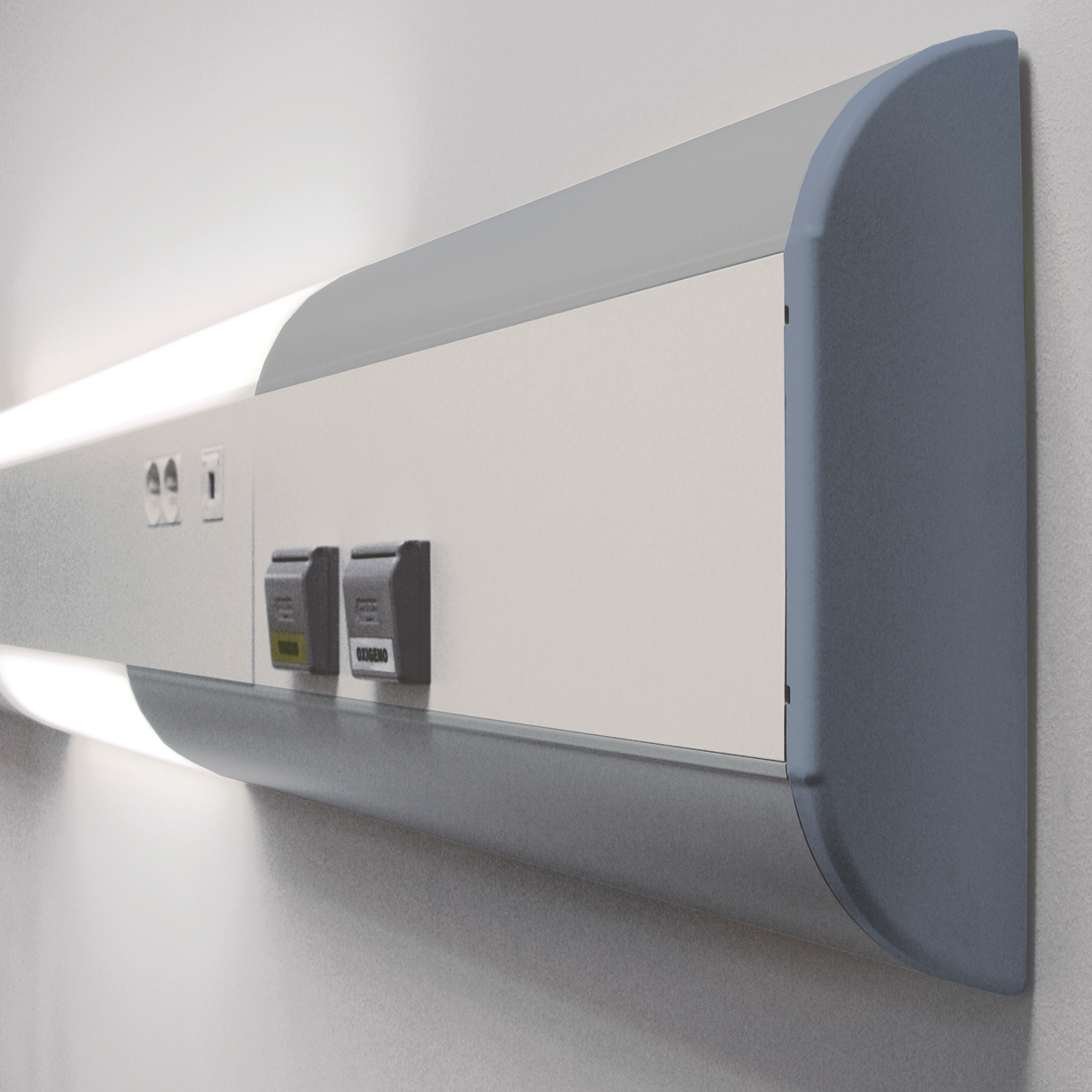

End caps made of Injected aluminum or high
quality steel.

null

Its design gives impression of reduced volume, highly integrated.

Made with extruded aluminum profiles and painted with epoxy-polyester in RAL colors, impact and cleaning products resistant.

Access to inner parts of the Bed head unit is done by clipping system covers to avoid seeing the screws.

Optimal use of internal space, absolute priority to functionality, ergonomics and maintenance.

The ARDYS system allows the installation of Electricity and gas sockets in accordance with international norms and standards with possibility of different combinations due to its flexible interior design.

null

Assembly

Bedhead unit mounted on the wall implemented using wall supports fixed in place by screws. The electrical and gas connections are made in the rear part of the bedhead unit by means of recesses in the profile. The connections can optionally be made by through the final plates.


Specifications

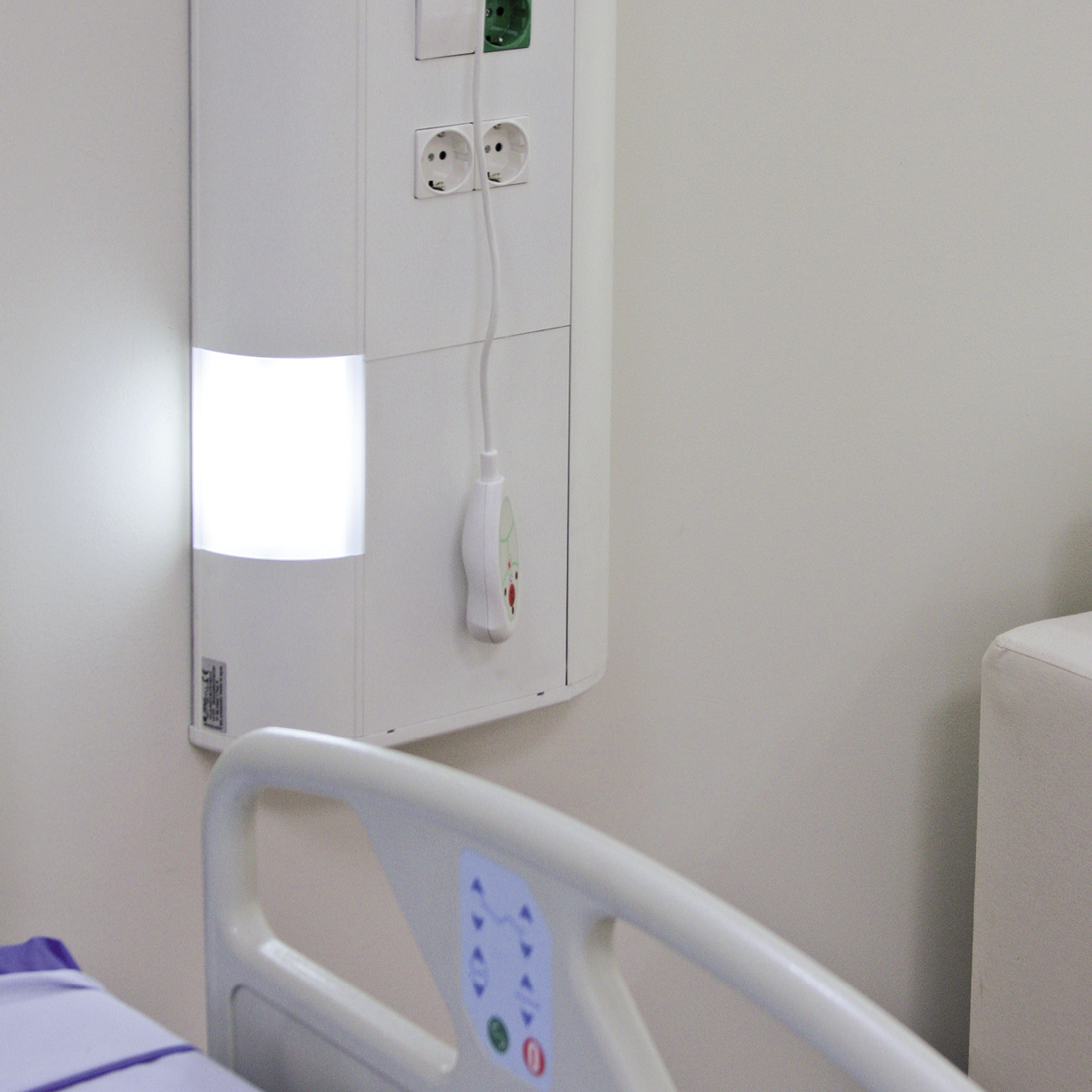

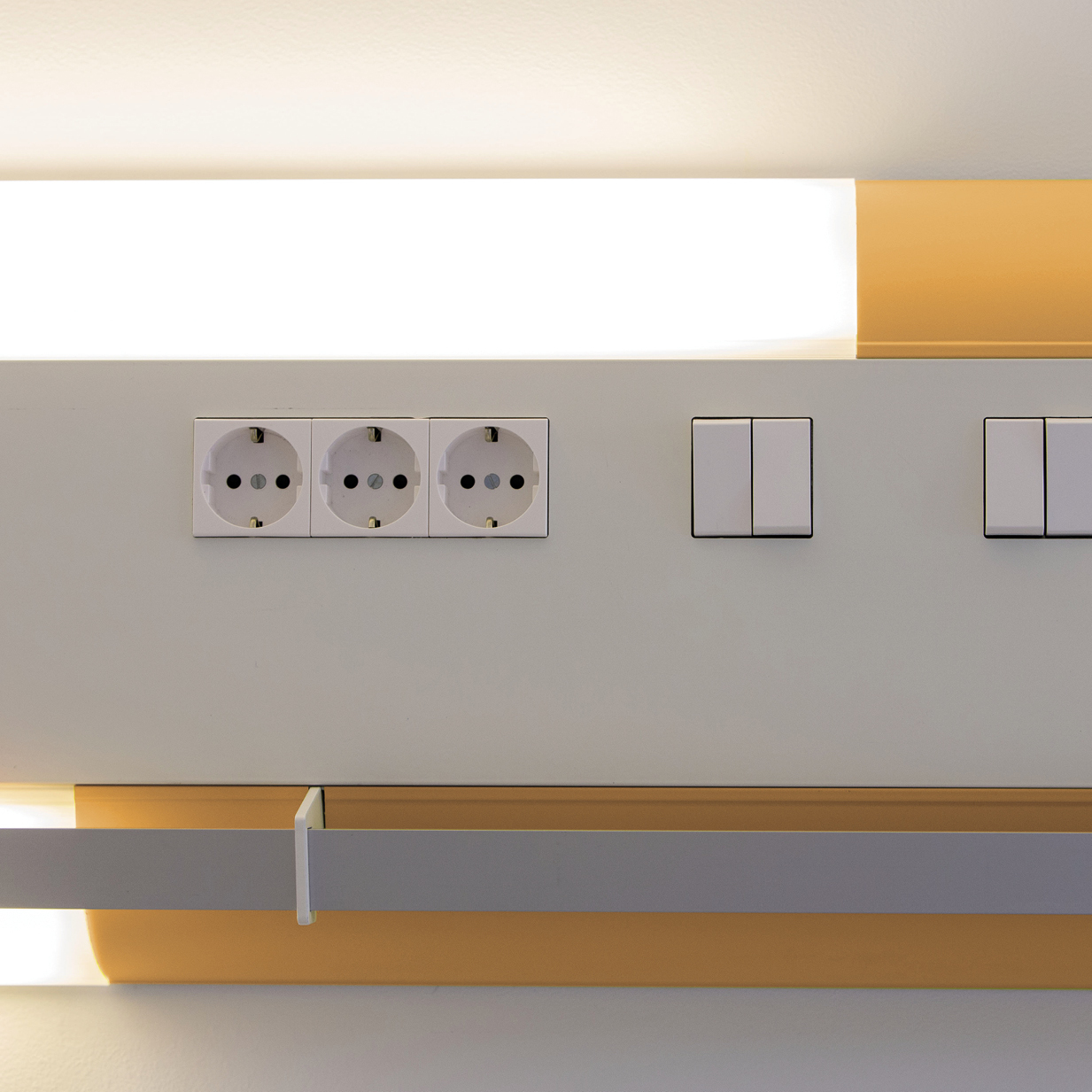

Power outputs: distributed in the front of the bedhead unit. (generally a schuko of 16A-230V). For other standards, please check.

Equipotential inputs equalisation outputs: distributed in the front of the bedhead unit. Please check distribution.

Gas outlets: distributed in the front of the bedhead unit, can be from any manufacturer, compliant with different standards and vary in number at the client’s request. Sufficient holes and supports can be left for the outlets to be installed after production.


Lighting

Ambient lighting: an independent tray with one or two fluorescent T5 tubes or LED strips located in the upper part of the bedhead unit.

Reading lighting: an independent tray with one or two fluorescent T5 tubes or LED strips located in the lower part of the bedhead unit.

Ambient lighting: an independent tray with a fluorescent T5 mini tube or LED located in the upper or lower part of the bedhead unit.

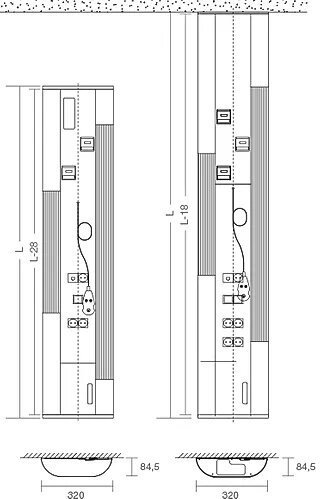

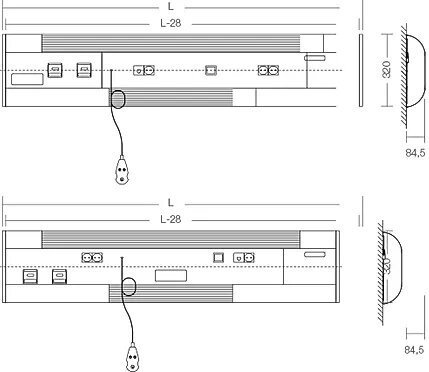

Measuremet

Other provisions

Nurse call, telephone, technical rail (30x10 mm) in the lower part of the headboard over some or all of the length of the bedhead unit for the correct placement of drippers or screen holding trays trays.
