Ardys-P

Products

Ardys-P

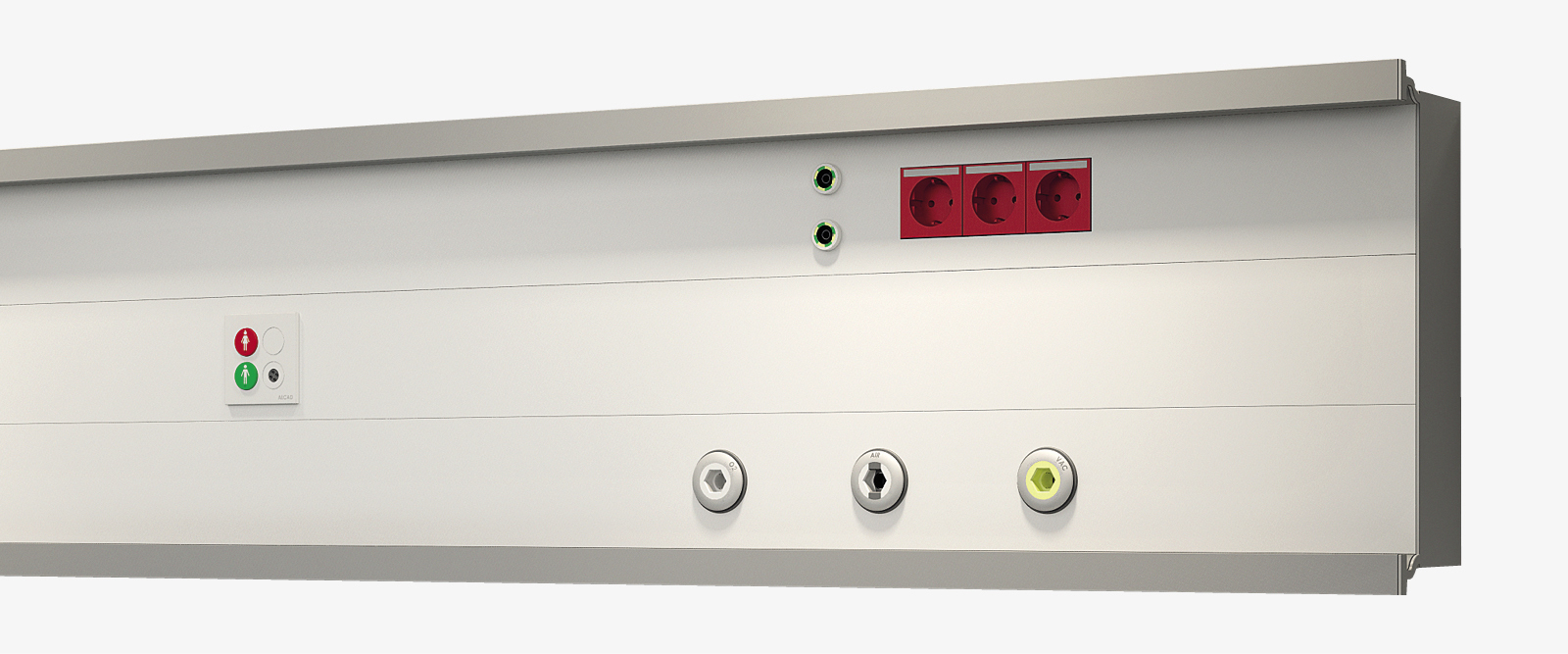

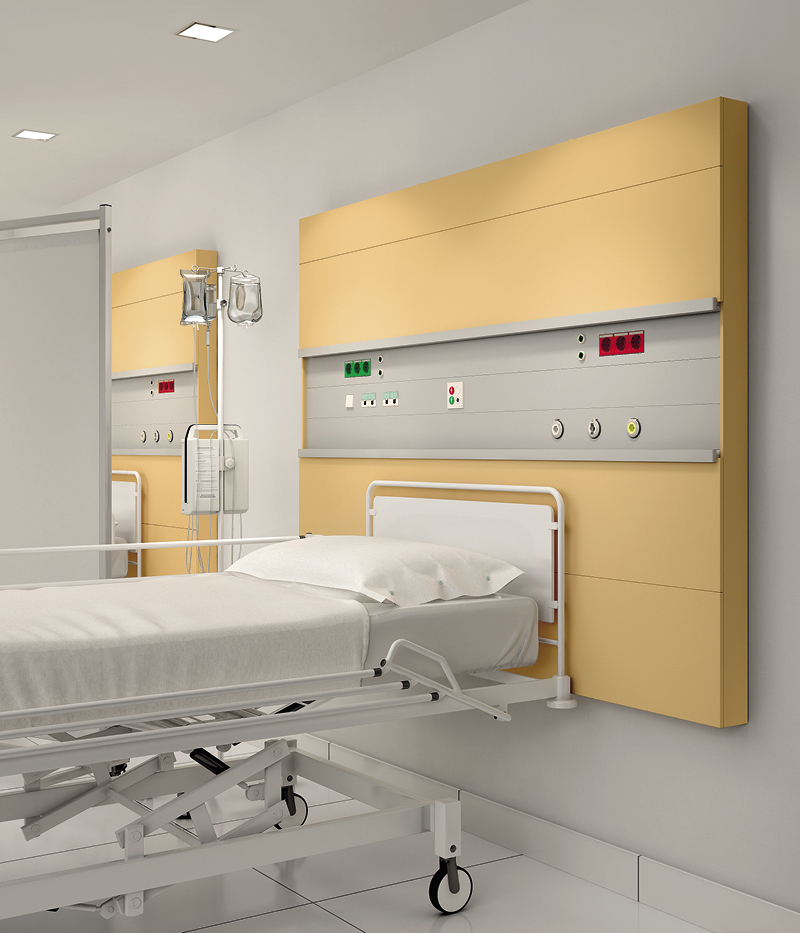

Ardys-P bedhead unit is a new product that offers the maximum flexibility for the invensive care units, since it is based in a series of profiles with different sizes, that can be combined to create a bedhead units with customized functionalities

null

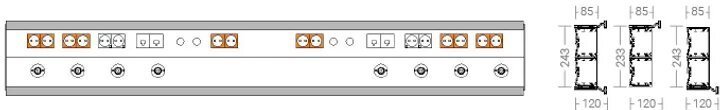

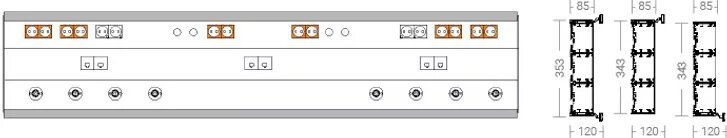

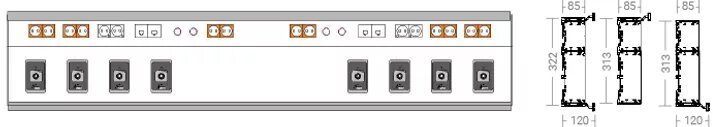

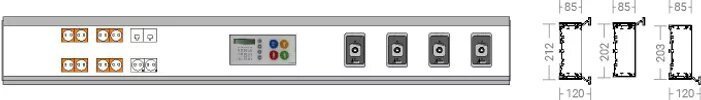

Horizontal customized options

Ardys-P can be installed either vertically or horizontally, and it can be customized as single, double or triple channel and with or without rails.


  • Channel max electricity / gases with internal crosswise division
  • Technical rail up / down or both


  • Channel max gases
  • Channel small electricity
  • Technical rail up / down or both


  • Channel max gases
  • Channel small electricity
  • Technical rail up / down or both


  • Channel max gases
  • Channel small data
  • Channel small electricity
  • Technical rail up / down or both
null

Completely modular design to meet all the requirements in critical care areas.

It can be configured as a single, double, triple channel, with or without Lighting, with or without medical rails of anodized aluminum 30x10 mm or 25x10 mm.

End caps made of Injected Aluminium or high quality steel.

Integrated concept that offers multiple options for integrating components and medical gases in rooms where it is not desired to place a traditional Bed-head unit.

Possibility of forming the unit with one, two or three channels, well integrated in the wall or in a panelled wall.

According to the requirements and design of the Rooms it can be manufactured horizontally, vertically and in different sizes.

Optionally it is also possible to supply the panelled wall formed by a structure in Wood or Aluminum.

null

Multiple accesories

  • Movable carriage.
  • Shelf for monitor.
  • Shelf with clamps for rail.
  • Monitor support.
  • Support for infusion pumps with clamps for rail.
  • Infusion pumps support for vertical rail with 2 clamps.
  • Infusion pumps support with 2 movable arms and 2 clamps.
  • Clamps with rail for vertical bedhead-units./li>
  • Basket with clamps for rail.
  • Support for iv-bottles with 2 rail clamps.
  • Support with 4 bottles hoock rail clamps and wall support.


Profiles

Max

Max

Small

Small
