Neos. Most functional and thorough design
New bedhead for hospitalization areas with a smart and minimalist design. It incorporates interior compartments that separate medicinal gases, high voltage, low voltage and lighting.

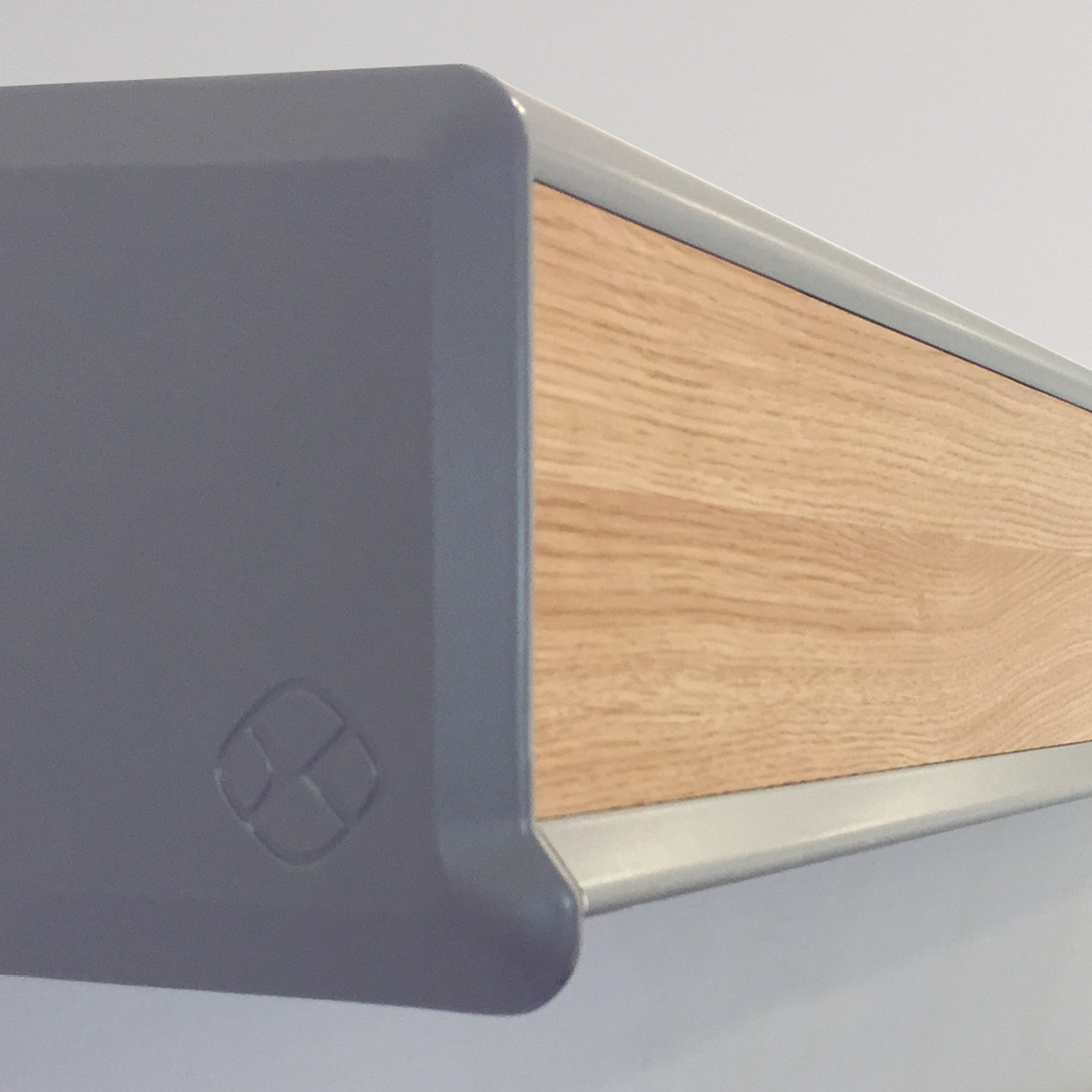

Manufactured using extruded aluminum, its surface is painted with an epoxypoliester coat or alternatively with a decorative HPL sheeting. It incorporates interior compartments that separate medicinal gases, high voltage, low voltage and lighting.

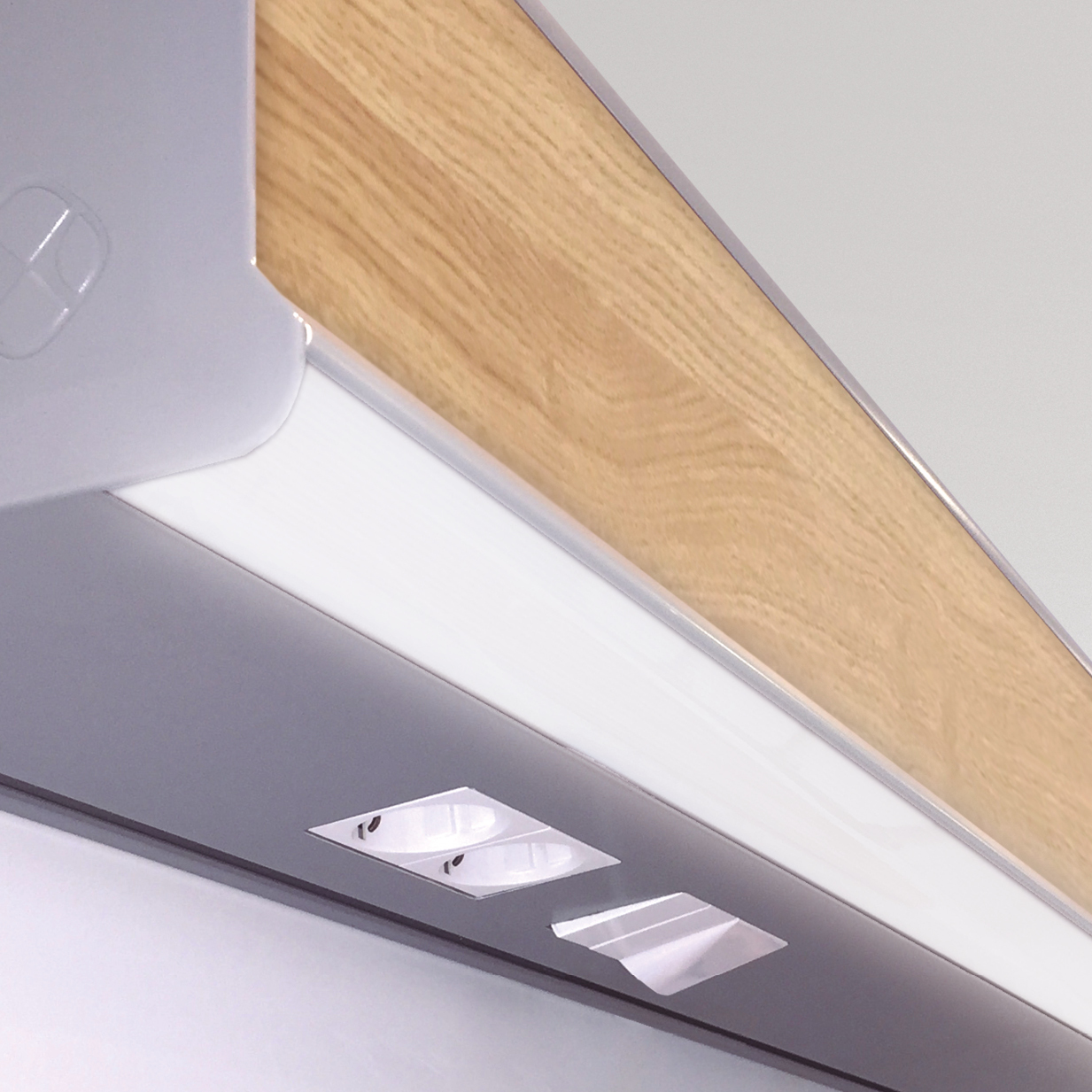

Electrical mechanisms are situated on the underside of the bedhead.

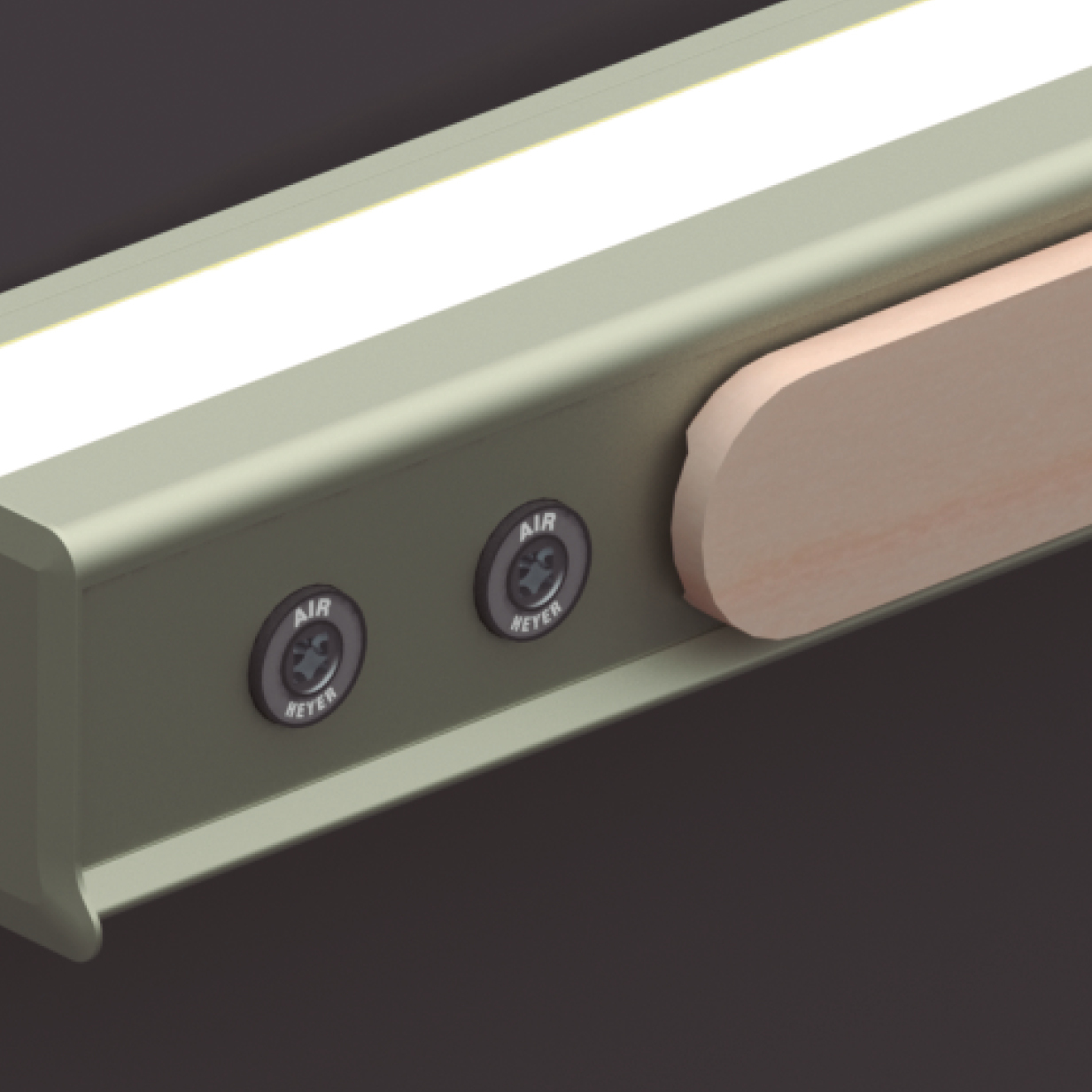

Medicinal gases are on the front face, on the ideal spot to easily connect external devices.
1. Electrical equipment
2. Medicinal gases
3. Ambient light
4. Reading light
5. Accesories slot
Underside slot for accesories such as trays, infusion pole, technical rail... All of which can be moved along the whole lenght of the bedhead.

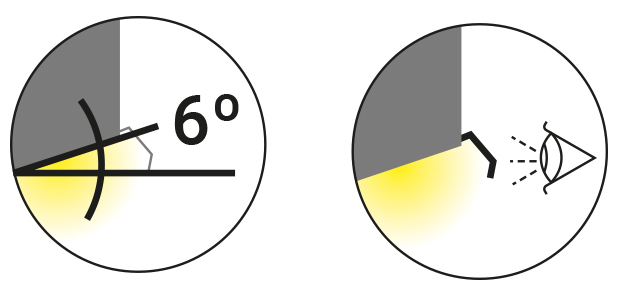

The underside counts on a 6º incline very useful to better focus light towards the pacient, and also an anti-glare shield to protect medical personnel.

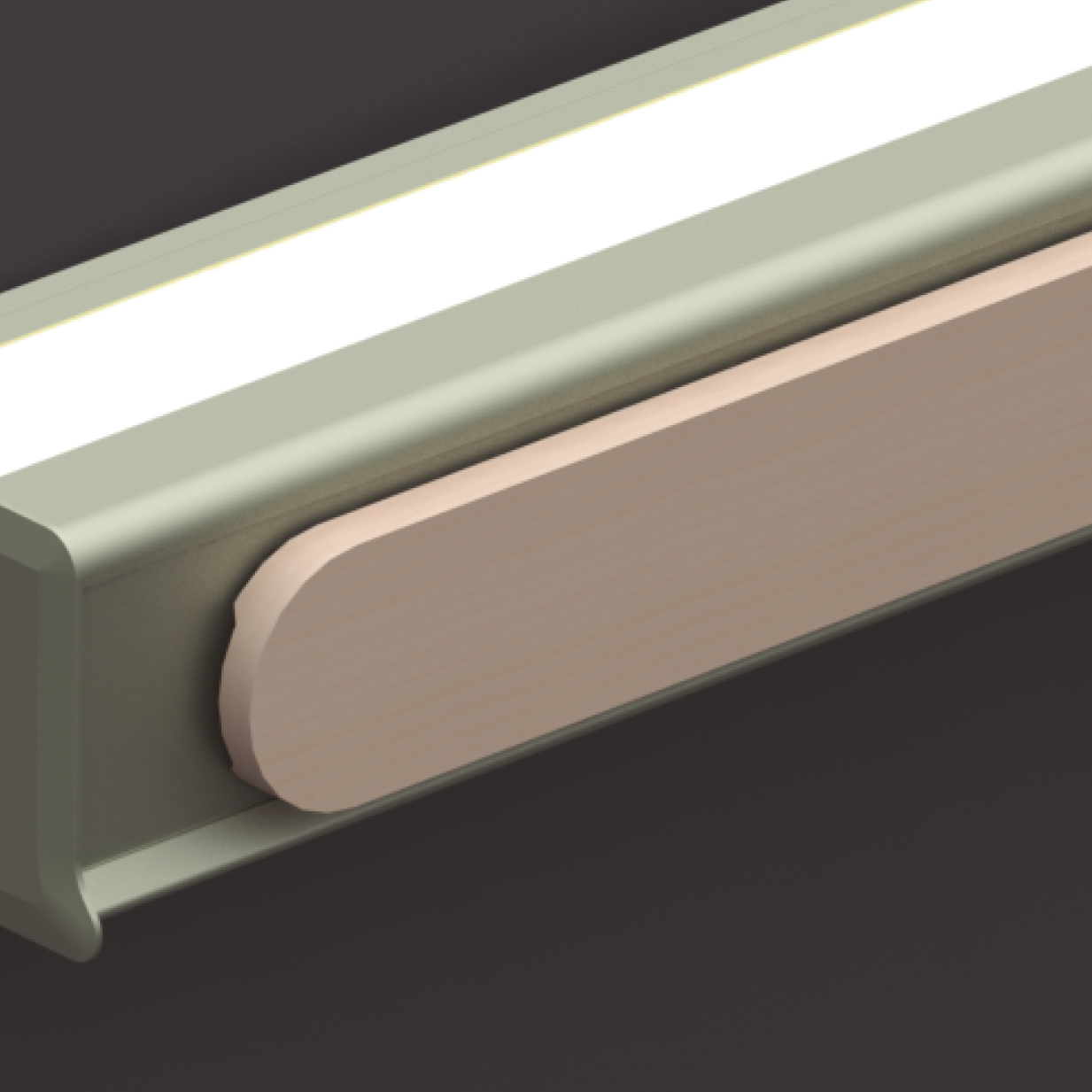

Optionally, it is possible to add a sliding frontal cover that hides the medicinal gas connections with different finishes on HPL or natural wood.
Setup options (direct light)
Electronically movable lighting by rotary switch to position the lighting just above the pacient in case of the bed being moved.

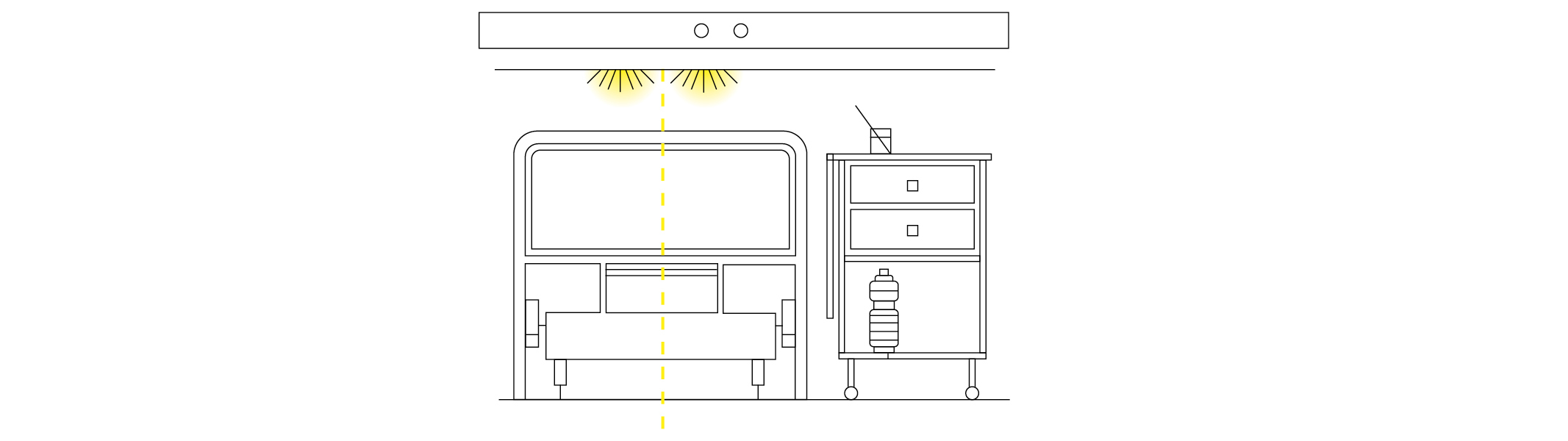

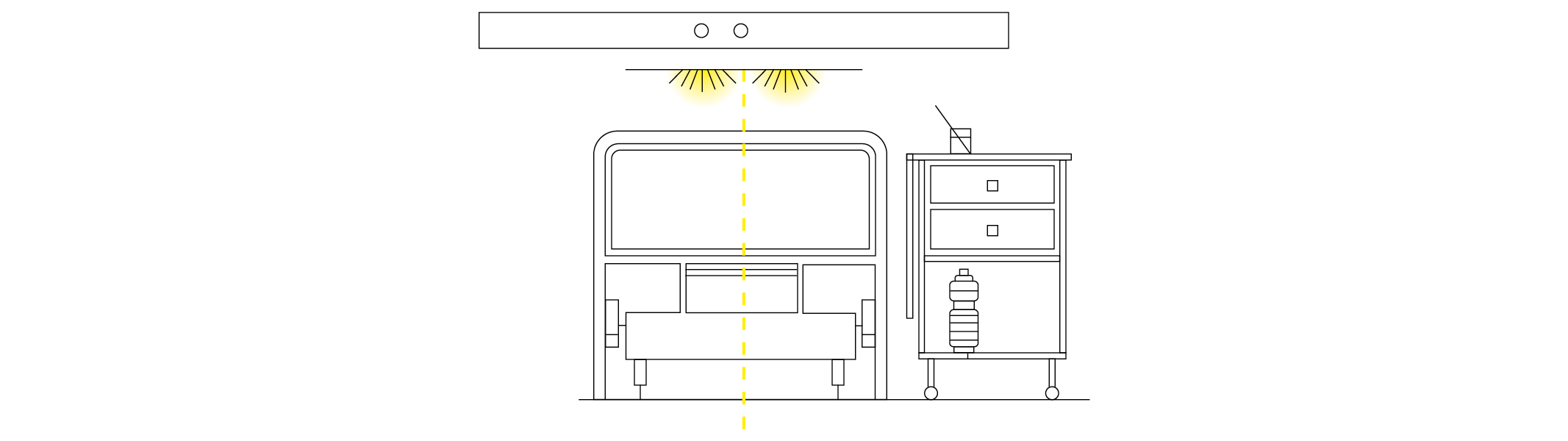

- Direct light, 2 3000K LED modules centered over the bed.

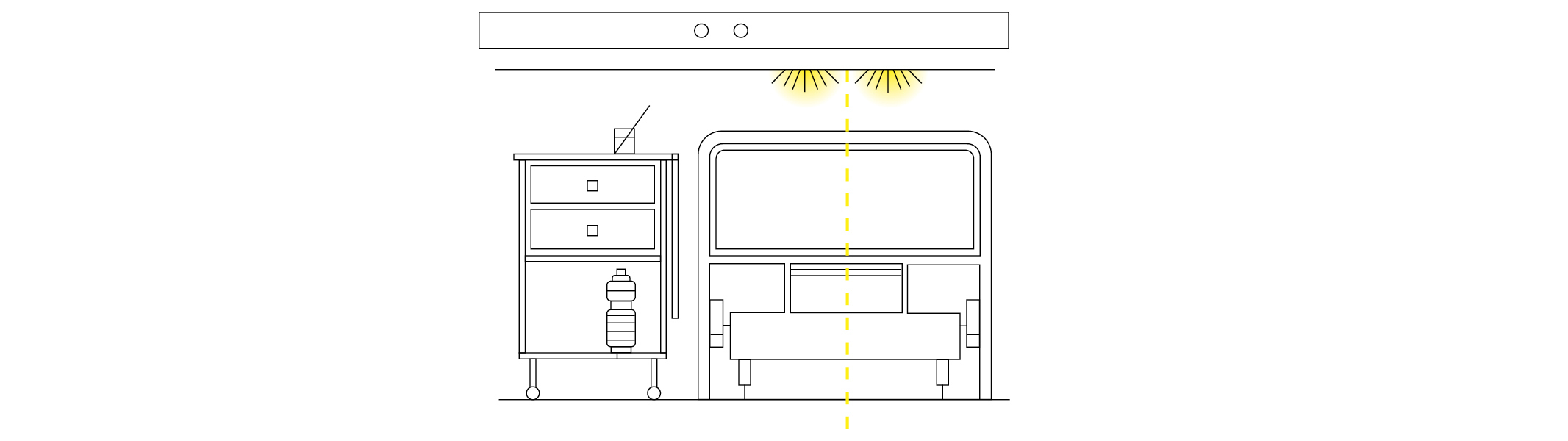

- Direct light, 2 3000K LED modules, movable 30 cm to the right side of the bed.
- Direct light, 2 3000K LED modules, movable 30 cm to the left side of the bed.

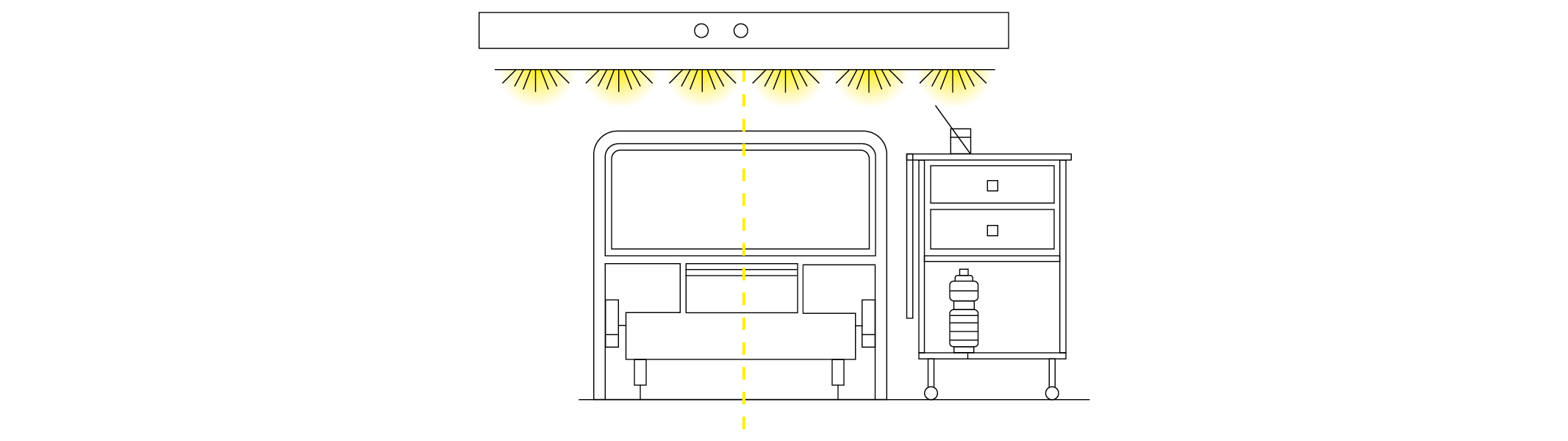

- The examination light is activated by a push button and it consists of 6 high performance 3000K LED modules, creating the perfect conditions for all tasks of medical personnel.
